Home ProductsFixed bed reactor series

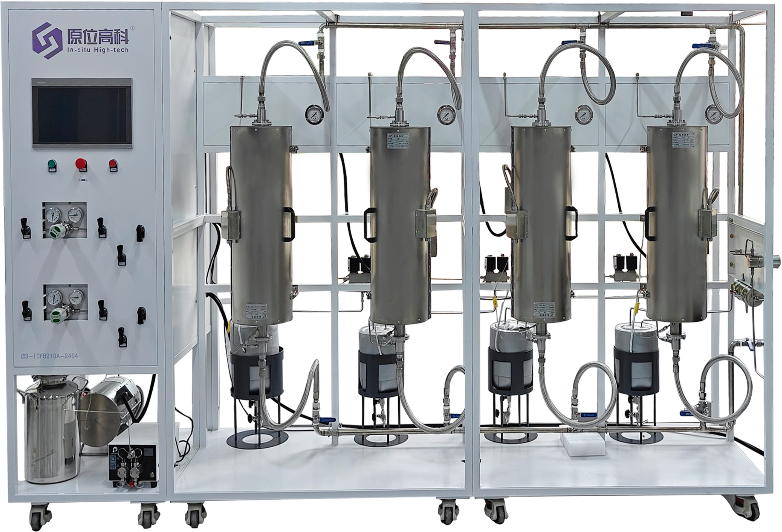

Multi-channel fixed bed reactor

Product introduction

The Hefei in situ multi-channel fixed bed reactor is a high-temperature and high-pressure multi position reaction device designed to maximize the efficiency of experimental personnel. It can achieve rapid, efficient, and parallel screening of catalytic materials, reaction evaluation, and process optimization. Each channel reactor can choose from integrated, independent, and fast switching operating modes.

Online Inquiry

Product advantage

Highly targeted
The process flow, process parameter confirmation, and standard component selection are fully customized according to customer needs;
Accurate calculation design
Based on customer information, accurately perform material and heat balance calculations, calculate and design the dimensions and parameters of non-standard components including reactors, separation devices, and heat exchange devices;
accuracy
Pressure ± 0.25% F.S, flow rate ± 1% F.S, temperature difference in the constant temperature zone ± 1 ℃, temperature difference between each channel ± 1 ℃, temperature control accuracy ± 0.1 ℃;
High degree of automation
The data collection and control of pressure, temperature, flow rate, etc. are integrated on the touch screen, with a simple and friendly operating interface, making it convenient and fast to use. It can achieve automatic product sampling and analysis, and operate continuously 24/7. Able to achieve arbitrary switching of evaluation stages such as pre-treatment, blowing, and reaction between different channels, maximizing the efficiency of experimental personnel;
parallelism
Parallel independent setting of reaction parameters, real-time monitoring status, and product analysis for each channel: independent flow meter injection, temperature control, separate configuration of product separation and sampling analysis modules to control parameter errors between channels;

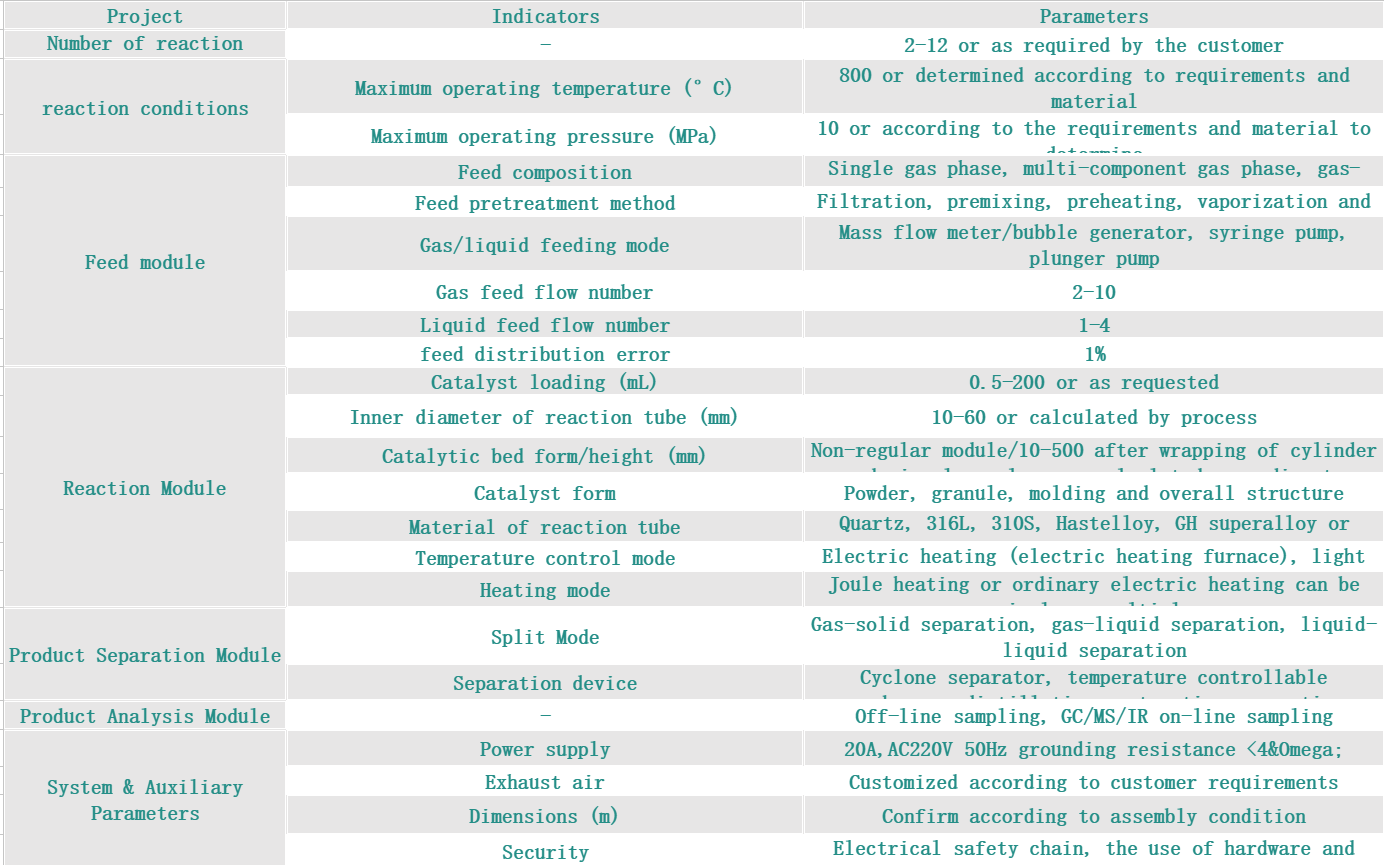

Product parameter

屏幕截圖 2025-04-15 093716.png
